The Sad State of HAR

Spring 2017 Update: Some of these issues have been fixed.

The HTTP Archive Format (HAR) was designed to allow tools to exchange network traffic using a standard format; this format is akin to Fiddler’s Session Archive Zip format but is supported natively by browser developer tools. Unlike SAZ files, it is not compressed by default, and often includes redundant text to simplify parsers.

Unfortunately, none of the four major browsers (IE, Edge, Chrome, Firefox) generates HAR correctly.

Internet Explorer 11 and below: Generates the file in XML instead of the proper JSON, due to a misreading of the specification. The export is also limited by numerous bugs in the F12 Network Capture tool, including missing data and misrepresentation of certain response types (e.g. 304s).

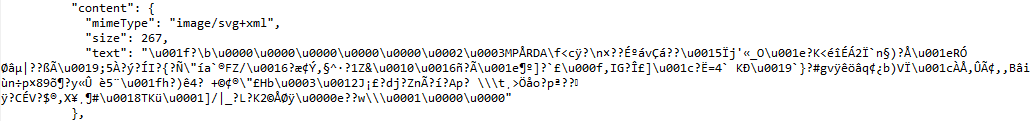

Firefox 45: Attempts to store GZIP’d response bodies as text.

Fails to include the encoding=”base64″ attribute when storing binary bodies using base64 encoding.

Embedded image permalink

Microsoft Edge: Fails to include the encoding=base64 token when storing binary bodies using base64 encoding.

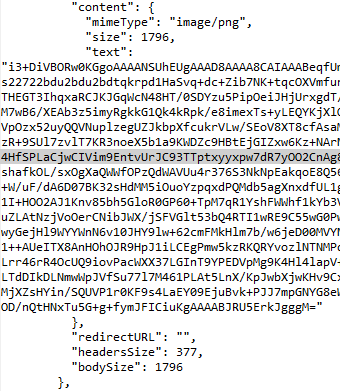

Chrome 47: “Save as HAR with content” doesn’t save the content.

Embedded image permalink

Unfortunately, there seems to be little effort to clean these problems up; the IE bug is at least four years old, the Edge bug is at least four months old. I filed bugs on Chrome and Firefox after failing to find any duplicates.

The HAR format specification itself has a number of shortcomings that have yet to be corrected, for instance:

  • No specified way to encode binary request bodies
  • No specified way to encode WebSocket messages

Perhaps the name of HAR spec-author Jan Odvarko’s blog is prescient: Software is hard.


Published by ericlaw

Impatient optimist. Dad. Author/speaker. Created Fiddler & SlickRun. PM @ Microsoft 2001-2012, and 2018-2022, working on Office, IE, and Edge. Now a SWE on Microsoft Defender Web Protection. My words are my own, I do not speak for any other entity.

2 thoughts on “The Sad State of HAR

  1. I had high hopes for this as well. Much as I love Fiddler, it is near impossible to get a user to install it to assist in troubleshooting. Using the built in browser tools is helpful but it is difficult to get users to focus on the right one. I wrote a little utility to parse HAR files to find errors and long load times, but the inconsistency across browsers made less useful than I had hoped.
