Certified Malice

One unfortunate (albeit entirely predictable) consequence of making HTTPS certificates “fast, open, automated, and free” is that both good guys and bad guys alike will take advantage of the offer and obtain HTTPS certificates for their websites.

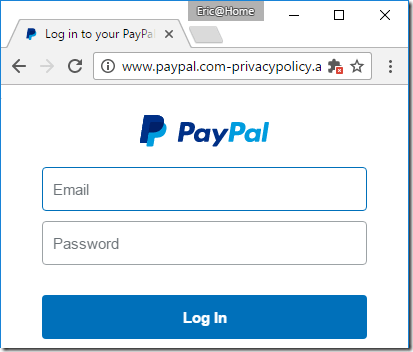

Today’s bad guys can easily turn a run-of-the-mill phishing spoof:

HTTP Phish screenshot

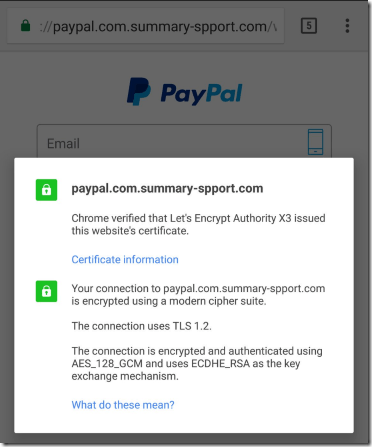

…into a somewhat more convincing version, by obtaining a free “domain validated” certificate and lighting up the green lock icon in the browser’s address bar:

HTTPS Phish screenshotPhishing site on Android

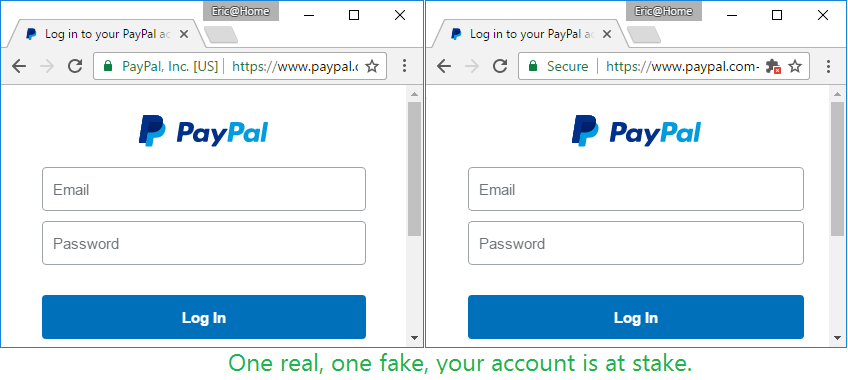

The resulting phishing site looks almost identical to the real site:

Real and fake side-by-side

By December 8, 2016, LetsEncrypt had issued 409 certificates containing “Paypal” in the hostname; that number is up to 709 as of this morning. Other targets include BankOfAmerica (14 certificates), Apple, Amazon, American Express, Chase Bank, Microsoft, Google, and many other major brands. LetsEncrypt validates only that (at one point in time) the certificate applicant can publish on the target domain. The CA also grudgingly checks with the SafeBrowsing service to see if the target domain has already been blocked as malicious, although they “disagree” that this should be their responsibility. LetsEncrypt’s short position paper is worth a read; many reasonable people agree with it.

The “race to the bottom” in validation performed by CAs before issuing certificates is what led the IE team to spearhead the development of Extended Validation certificates over a decade ago. The hope was that, by putting the CAs name “on the line” (literally, the address line), CAs would be incentivized to do a thorough job vetting the identity of a site owner. Alas, my proposal that we prominently display the CAs name for all types (EV, OV, DV) of certificate wasn’t implemented, so domain validated certificates are largely anonymous commodities unless a user goes through the cumbersome process of manually inspecting a site’s certificates. For a number of reasons (to be explored in a future post), EV certificates never really took off.

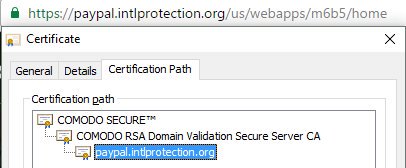

Of course, certificate abuse isn’t limited to LetsEncrypt—other CAs have also issued domain-validated certificates to phishing sites as well:


Who’s Responsible?

Unfortunately, ownership of this mess is diffuse, and I’ve yet to encounter any sign like this:


Blame the Browser

The core proposition held by some (but not all) CAs is that combatting malicious sites is the responsibility of the user-agent (browser), not the certificate authority. It’s an argument with merit, especially in a world where we truly want encryption for all sites, not just the top sites.

That position is bolstered by the fact that some browsers don’t actively check for certificate revocation, so even if LetsEncrypt were to revoke a certificate, the browser wouldn’t even notice.

Another argument is that browsers overpromise the safety of sites by using terms like Secure in the UI—while the browser can know whether a given HTTPS connection is present and free of errors, it has no knowledge of the security of the destination site or CDN, nor its business practices.  Internet Explorer’s HTTPS UX used to have a helpful “Should I trust this site?” link, but that content went away at some point. Security wording is a complicated topic because what the user really wants to know (“Is this safe?”) isn’t something a browser can ever really answer in the affirmative. Users tend to be annoyed when you tell them only the truth– “This download was not reported as not safe.”

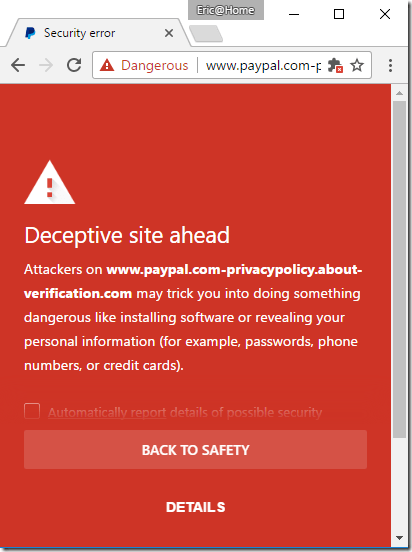

The obvious way to address malicious sites is via phishing and malware blocklists, and indeed, you can help keep other users safe by reporting any unblocked phish you find to the Safe Browsing service; this service protects Chrome, Firefox, and Safari users. You can also forward phishing messages to scam@netcraft.com and/or PhishTank. Users of Microsoft browsers can report unblocked phish to SmartScreen (in IE, click Tools > SmartScreen > Report Unsafe Website). Known-malicious sites will get the UI treatment they deserve:


Unfortunately, there’s always latency in block lists, and a phisher can probably turn a profit with a site that’s live less than one hour. Phishers also have a whole bag of tricks to delay blocks, including cloaking whereby they return an innocuous “Site not found” message when they detect that they’re being loaded by security researchers’ IP addresses, browser types, OS languages, etc.

Blame the Websites

Some argue that websites are at fault, for:

  1. Relying upon passwords and failing to adopt unspoofable two-factor authentication schemes which have existed for decades
  2. Failing to adopt HTTPS or deploy it properly until browsers started bringing out the UI sledgehammers
  3. Constantly changing domain names and login UIs
  4. Emailing users non-secure links to redirector sites
  5. Providing bad security advice to users

Blame the Humans

Finally, many lay blame with the user, arguing user education is the only path forward. I’ve long given up much hope on that front—the best we can hope for is raising enough awareness that some users will contribute feedback into more effective systems like automated phishing block lists.

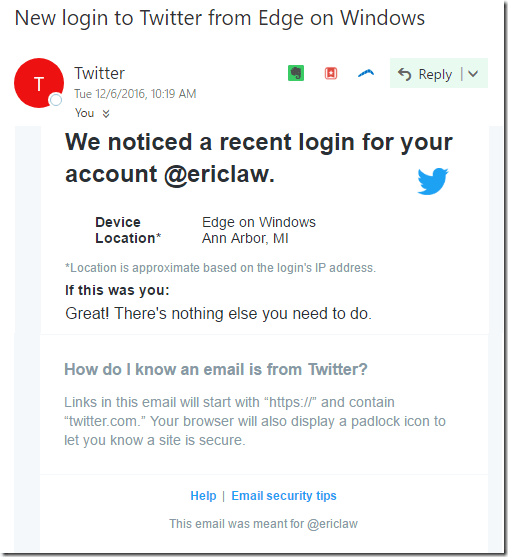

We’ve had literally decades of sites and “experts” telling users to “Look for the lock!” when deciding whether a site is to be trusted. Even today we have bad advice being advanced by security experts who should know better, like this message from the Twitter security team which suggests that https://twitter.com.access.info is a legitimate site.

Email from Twitter Security Team

Where Do We Go From Here?

Unfortunately, I don’t think there are any silver bullets, but I also think that unsolvable problems are the most interesting ones. I’d argue that everyone who uses or builds the web bears some responsibility for making it safer for all, and each should try to find ways to do that within their own sphere of control.

Following is an unordered set of ideas that I think are worthwhile.


Historically, we in the world of computers have been most comfortable with binary – is this site malicious, or is it not? Unfortunately, this isn’t how the real world usually works, and fortunately many systems are moving more toward a set of signals. When evaluating the trustworthiness of a site, there are dozens of available signals, including:

  • HTTPS Certificates
  • Age of the site
  • Has the user visited this site before
  • Has the user stored a password on this site before
  • Has the user used this password before, anywhere
  • Number of visitors observed to the site
  • Hosting location of the site
  • Presence of sensitive terms in the content or URL
  • Presence of login forms or executable downloads

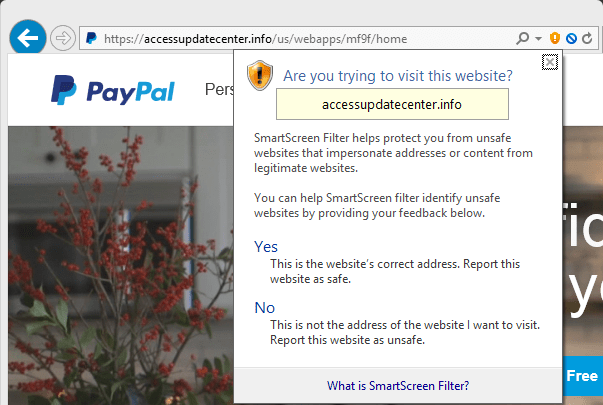

None of these signals is individually sufficient to determine whether a site is good or evil, but combined together they can be used to feed systems that make good sites look safer and evil sites more suspect. Suspicious sites can be escalated for human analysis, either by security experts or even by crowd-sourced directed questioning of ordinary users. For instance, see the heuristic-triggered Is This Phish? UI from Internet Explorer’s SmartScreen system:


The user’s response to the prompt is itself a signal that feeds into the system, and allows more speedy resolution of the site as good or bad and subject to blocking.

One challenge with systems based on signals is that, while they grow much more powerful as more endpoints report signals, those signal reports may have privacy implications for individual users.


In the real world, many things are based on reputation—without a good reputation, it’s hard to get a job, stay in business, or even find a partner.

In browsers, we have a well-established concept of bad reputation (your site or download appears on a block list) but we’ve largely pushed back against the notion of good reputation. In my mind, this is a critical failing—while much of the objection is well-meaning (“We want a level playing field for everyone”), it’s extremely frustrating that we punish users in support of abstract ideals. Extended Validation certificates were one attempt at creating the notion of good reputation, but they suffered from the whims of CAs’ business plans and the legal system that drove absurdities like:

Security chip showing full legal name of Washington Post's holding company

While there are merits to the fact that, on the web, no one can tell whether your site is a one-woman startup or a Fortune 100 behemoth, there are definite downsides as well.

Owen Campbell-Moore wrote a wonderful paper, Rethinking URL bars as primary UI, in which he proposes a hypothetical origin-to-local-brand mapping, which would allow browsers to help users more easily understand where they really are when interacting with top sites. I think it’s a long-overdue idea brilliant in its obviousness. When it eventually gets built (by Apple, Microsoft, Google, or some upstart?) we’ll wonder what took us so long. A key tradeoff in making such a system practical is that designers must necessarily focus on the “head” of the web (say, the most popular 1000 websites globally)– trying to generalize the system for a perfectly level playing field isn’t practical– just like in the real world.


  • Browsers could again make a run at supporting unspoofable authentication methods natively.
  • Browsers could do more to take authentication out from the Zone of Death, limiting spoofing attacks.
  • New features like Must-Staple will allow browsers to respond to certificate revocation information without a performance penalty.
  • Automated CAs could deploy heuristics that require additional validation for certificates containing often-spoofed domains.For instance, if I want a certificate for paypal-payments.com, they could either demand additional information about me personally (allowing a visit from Law Enforcement if I turn out to be a phisher) or they could even just issue a certificate with a validity period a week in the future. The certificate would be recorded in CertificateTransparency logs immediately, allowing brand monitoring firms to take note and respond immediately if phishing is detected when the certificate became valid. Such systems will be imperfect (you need to handle BankOfTheVVest.com as a potential spoof of BankOfTheWest.com, for instance) but even targeting a few high-value domains could make a major dent.

Fight the phish!


Update: Chris wrote a great post on HTTPS UX in Chrome.

Published by ericlaw

Impatient optimist. Dad. Author/speaker. Created Fiddler & SlickRun. PM @ Microsoft 2001-2012, and 2018-2022, working on Office, IE, and Edge. Now a SWE on Microsoft Defender Web Protection. My words are my own, I do not speak for any other entity.

11 thoughts on “Certified Malice

  1. Should domain phishing prevention be incorporated into the Baseline Requirements or is it best left up to individual CAs/browsers to handle according to their own policy? What is the requirement needed to invoke these protections against certain domains and how would they be detected? Paypal is an obvious target but I would imagine the pool is deep. Would this policy be abusable by companies to coerce CAs to police their trademarks, against something like a paypalsucks.com?

  2. DV is a race to the bottom for sure. Making it free will do that after all. What has happened here though is that DV is now commoditised and the browser vendors really have not reflected that in the UI messaging, chiefly by promoting OV.

    It would be nice if browser vendors would take OV seriously and incentivise its use otherwise it serves very little purpose. Currently Chrome for example does nothing in this regard.

    It would be a small step, sure, but it would be understandable to see DV given the ‘grey’ treatment and to start telling users: “The site owner has taken basic steps to secure this website however we cannot verify the organisation who own this site. If you believe you are interacting with a business rather than a personal site, this may be a sign that this website is illegitimate”… in a snappier way of course.

  3. The WebPKI trust model was originally designed so that the attacker’s work factor exceeded their expected benefit. While it has always been possible to obtain a bogus certificate, this has not been worthwhile for the attacker until quite recently.

    I wrote a longer treatment of this a couple of years ago, https://tools.ietf.org/html/draft-hallambaker-prismproof-trust-01

    The short version is that the cost to the attacker is not just how much they spend on the certificate, it is the total cost of obtaining it. In the case of and OV or EV cert, the attacker has to obtain a business registration in such a fashion that they can’t be traced afterwards. Again, easy to do once but doing that repeatedly without being caught is non trivial because repetition creates patterns and patterns are what lead to being caught.

    The principal work factor in traditional DV was the need to use a credit card. Note that the cost was irrelevant as the attacker would use a fake card. But using fake cards does impose costs on an attacker. There is some friction in the system.

  4. A big problem with phishing is time to discovery as you say, wouldn’t the adoption of certificate transparency – with the ability to search the logs, make it much easier to discover phishing sites if they are variants of the domain? It seem that a domain owner that is prone to phishing is well positioned to look in the logs (or for that matter have the folks doing the Safe browsing) and blacklisting anything that doesn’t match the legit domain owner. Really it gives defenders a time advantage before those spoofing domains are utilized, no?

  5. While they don’t solve the core problem, password managers provide a great and easy to use safeguard against this. If a fake PayPal site tricks me, it won’t trick 1Password etc. when it looks up the domain.

    There are privacy considerations but what if browsers kept a list of HTTPS domains previously trusted by the user and prompted when they visited a new one that closely resembled (e.g. Levenshtein distance, like paypai.com) and/or begins with a trusted one (e.g. paypal.com.customer-15262.com)? It seems that could provide a good level of protection that would be difficult to defeat, as the list of trusted domains are different on every browser, and minimally invasive as it would only prompt on first visit, similar to the prompt asking if you want chrome to save your password.

  6. I see a user-interface issue.

    Domains go right to left, so the url display should be aligned to always show the end of the domain.

    All the listed examples use sub-domains.

    1. These examples happen to work that way, but they need not. E.g. a fqdn of ‘paypal-account.com’ is only an eTLD+1 and would still spoof almost everyone.

      1. Well, true. But it would give a way smaller “attack space”.

        I would say it’s harder to get a ex: “paypal” containing domain (as in something.tld), than a random sub-domain doing it of some totally unrelated domain.

      2. Math says that the “attack space” is smaller, yet still practically infinite. And no, it’s not meaningfully harder to get an eTLD+1.

  7. I side with the argument that it is the website’s fault. Username/password authentication is a woefully inadequate, outdated solution that makes little sense in the wilds of public WAN. Consider Steve Gibson’s SQRL solution as the next step forward in authentication https://www.grc.com/sqrl/sqrl.htm. IMHO companies that provide sensitive services on the internet should be running sideways away from the username/password method.

    I personally try not to use services that at least don’t offer some kind of two-factor authentication, but I don’t think two-factor auth solutions are endearing to the mainstream.
