Edge/Chrome Policy Registry Entries

One of the more common problems reported by Enterprises is that certain Edge/Chrome policies do not seem to work properly when the values are written to the registry.

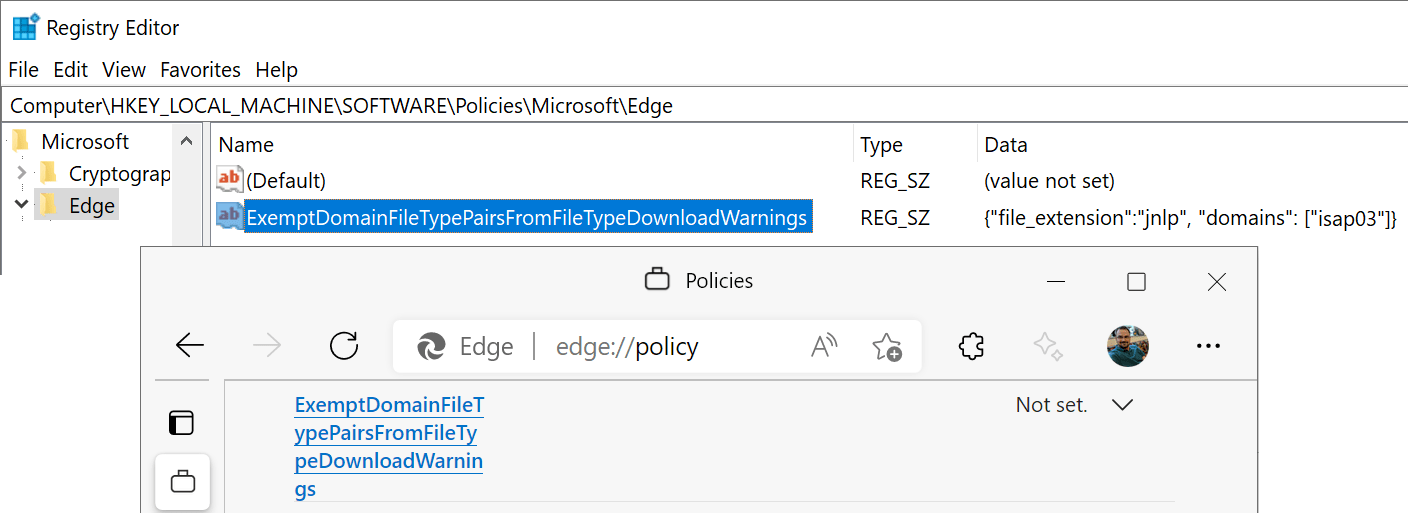

For instance, when using the about:policy page to examine the browser’s view of the applied policy, the customer might complain that a policy value they’ve entered in the registry isn’t being picked up:

In a quick look at the Microsoft documentation for the policy: ExemptDomainFileTypePairsFromFileTypeDownloadWarnings, the JSON syntax looks almost right, but in one example it’s wrapped in square brackets. But in another example, the value is not. What’s going on here?

A curious and determined administrator might notice that by either adding the square brackets:

…or by changing the Exempt…Warnings registry entry from a REG_SZ into a key containing values:

…the policy works as expected:

What’s going on?

As the Chromium policy_templates.json file explains, each browser policy is implemented as a particular type, depending on what sort of data it needs to hold. For the purposes of our discussion, the two relevant types are list and dict. Either of these types can be used to hold a set of per-site rules:

* 'list' - a list of string values. Using this for a list of JSON strings is now discouraged, because the 'dict' is better for JSON.
* 'dict' - perhaps should be named JSON. An arbitrarily complex object or array, nested objects/arrays, etc. The user defines the value with JSON.

When serializing these policies to the registry: dict policies use a single REG_SZ registry string, while the intention is that list policies are instead stored in values of a subkey. However, that is not technically enforced, and you may specify the entire list using a single string. However, if you do represent the entire JSON list as a single string value, you must wrap the value in [] (square brackets) to represent that you’re including a whole array of values.

In contrast, if you encode the individual rules as numbered string values within a key (this is what we recommend), then you must omit the square brackets because each string value represents a single rule (not an array of rules).

Group Policy Editor

If you use the Group Policy Editor rather than editing the registry directly, each list-based policy has a Show... button that spawns a standalone list editor:

In contrast, when editing a dict, there’s only a small text field into which the entire JSON string should be pasted:

To ensure that a JSON policy string is formatted correctly, consider using a JSON validator tool.

Bonus Policy Trivia

Encoding

While JavaScript allows wrapping string values in ‘single’ quotes, JSON and thus the policy code requires that you use “double” quotes.

Non-Enterprise Use

The vast majority of policies will work on any computer, even if it’s just your home PC and you’re poking the policy into the registry directly. However, to limit abuse by other software, there are a small set of “protected” policies whose values are only respected if Chromium detects that a machine is “managed” (via Domain membership or Intune, for example).

The kSensitivePolicies list can be found in the Chromium source and encompasses most, but not all (e.g. putting a Application Protocol on the URLAllowlist only works for managed machines) restrictions.

You can visit about:management on a device to see whether Chromium considers it managed.

Refresh

You might wonder when Edge reads the policy entries from the registry. Chromium’s policy code does not subscribe to registry change event notifications. That means that it will not notice that a given policy key in the registry has changed until:

  1. The browser restarts, or
  2. You push the Reload Policies button on the about://policy page, or
  3. A Group Policy update notice is sent by Windows, which happens when the policy was applied via the normal Group Policy deployment mechanism.

    Chromium and Edge rely upon an event from the RegisterGPNotification function to determine when to re-read the registry.

Note that not all policies support being updated at runtime; the Edge Policy documentation notes whether each policy supports updates with the Dynamic Policy Refresh value (visualizing the dynamic_refresh flag in the underlying source code).

-Eric
