Chromium’s DNS Cache

From the mailbag:

Q: How long does Chromium cache hostnames? I know a user can clear the hostname cache using the Clear host cache button on about://net-internals/#dns, but how long it will take for the cache to be removed if no manual action is taken? After changing DNS records on my server, nslookup from a client reflects the new IP address, but Edge is still using the old address?

A: tl;dr: Probably one minute.

Host resolution is surprisingly complicated.

DNS caching is intended to be controlled via a “time-to-live” value on DNS responses—each DNS lookup response is allowed to be cached for a time period it itself defines, and after that time period expires, the entry is meant to be deemed “stale”, and a new lookup undertaken.

DNS records get cached in myriad places (inside the browser, both literally—via the Host Resolver Cache, and implicitly– in the form of already-connected keep-alive sockets), in the operating system, in your home router, in the upstream ISP, and so forth. Using nslookup to look up an address is a reasonable approach to check whether a fresh result is being returned from the OS’ DNS cache (or the upstream network), but it is worth mentioning that Chromium can be configured not to use the OS DNS resolver (e.g. instead using DNS-over-HTTPS or another DNS configuration).

Within the browser, which resolver is used can be controlled by policy (Chrome, Edge).

If Chromium is using the System DNS resolver, the cache entry should be fresh for 60 seconds— Chromium doesn’t know the DNS server’s desired TTL because the OS’ function getaddrinfo() didn’t tell it.

// Default TTL for successful resolutions with ProcTask.
const unsigned kCacheEntryTTLSeconds = 60;

If Chromium performs the resolution itself (via DoH, or via its built-in resolver), the Host Resolver Entry should respect the DNS response’s TTL, with a minimum of 60 seconds.

Beyond treating entries older than their TTL as stale, Chromium also monitors “network change” events (e.g. connecting/disconnecting from WiFi or a VPN) and when those occur, the Host Resolver Cache will treat all previously-resolved entries as stale.

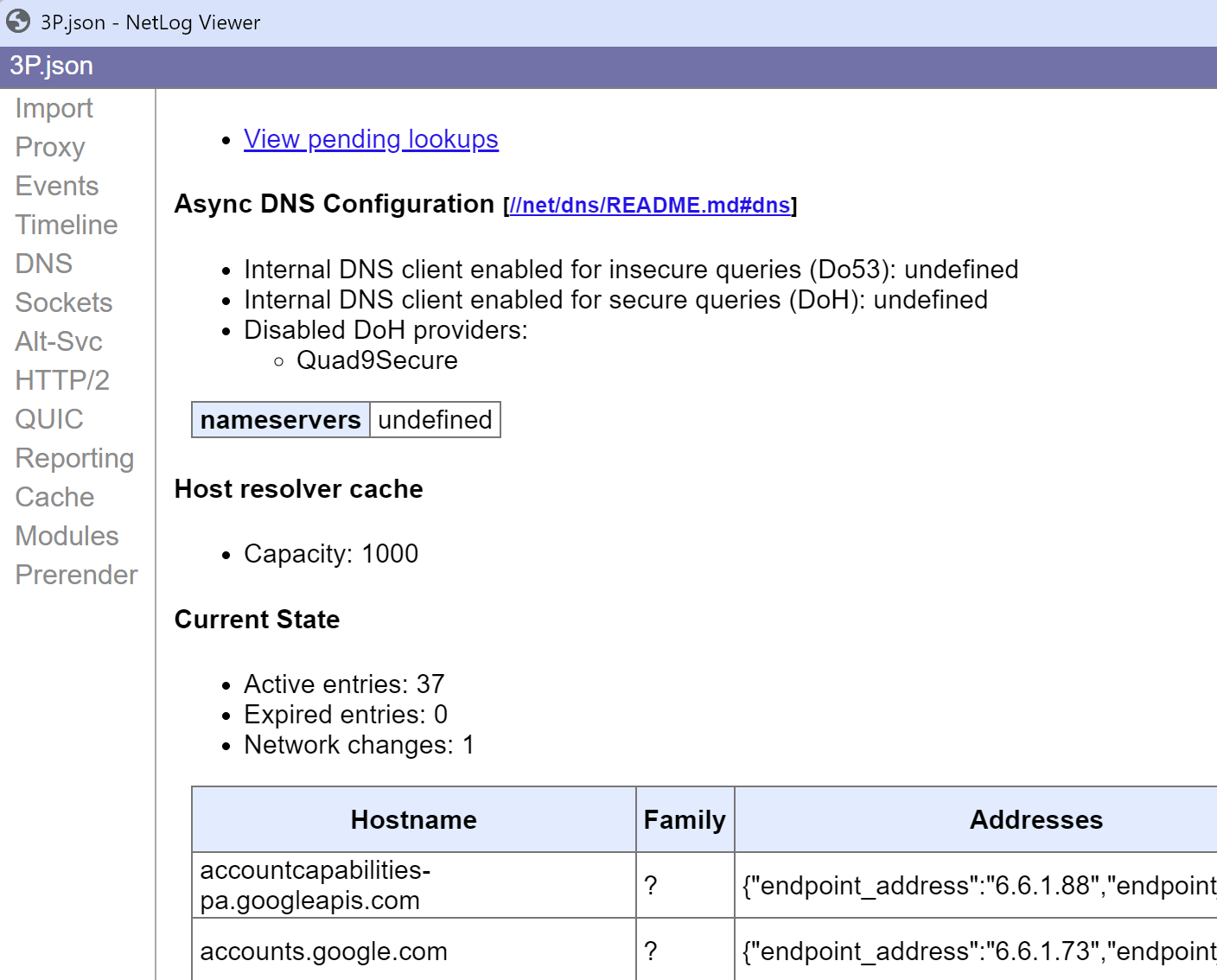

A Chromium net-export will contain details of the browser’s DNS configuration, and the contents of the browser’s DNS cache, including the TTL/expiration for each entry.

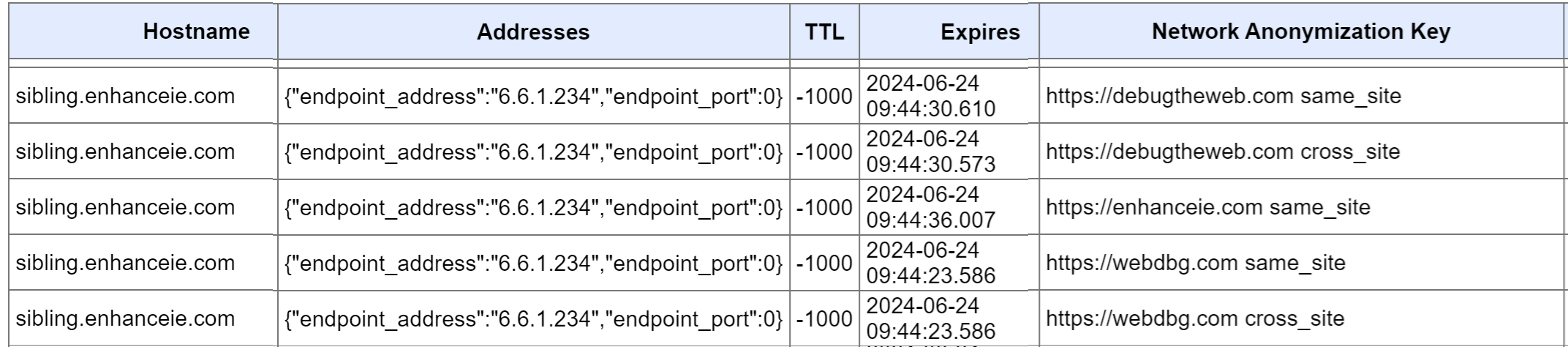

NetLog Viewer‘s DNS Tab; note the -1000 value for the unknown TTL

Beyond caching behavior, you may see other side effects when switching between the built-in DNS resolver and the system DNS resolver. The built-in resolver has more flexibility and supports requesting additional record types for HTTPS Upgrades, Encrypted Client Hello, etc.


Published by ericlaw

Impatient optimist. Dad. Author/speaker. Created Fiddler & SlickRun. PM @ Microsoft 2001-2012, and 2018-2022, working on Office, IE, and Edge. Now a SWE on Microsoft Defender Web Protection. My words are my own, I do not speak for any other entity.
