Download Blocking by File Type

I’ve previously spoken about the magic of the File Type Policies component — a mechanism that allows files to be classified by their level of “dangerousness”, such that harmless files (e.g. .txt files) can be downloaded freely, whilst potentially-dangerous files (e.g. .dll files) are subjected to a higher degree of vetting and a more security-conscious user-experience.

File Type Danger Level

Microsoft Edge inherits its file type policies from the upstream Chromium browser; you can view the current contents of the list here, and documentation of its format here.

Within the list, you’ll see that each type has a danger_level, which is one of three values: DANGEROUS, NOT_DANGEROUS, or ALLOW_ON_USER_GESTURE.

The first two are simple: NOT_DANGEROUS means Safe to download and open, even if the download was accidental. No additional warnings are necessary. DANGEROUS means Always warn the user that this file may harm their computer. Let users continue or discard the file. If [SmartScreen or Safe Browsing] returns a SAFE verdict, still warn the user before saving the file.

The third setting, ALLOW_ON_USER_GESTURE1 is more subtle. Such files are potentially dangerous, but likely harmless if the user is familiar with download site and if the download was intentional. Microsoft Edge will allow such downloads to proceed automatically if two conditions are both met:

  1. User Gesture: There is a user gesture associated with the network request that initiated the download (e.g. the user clicked a link to the download).
  2. Familiar Initiator: There is a recorded prior visit to the referring origin prior to the most recent midnight (i.e. yesterday or earlier). Such a visit implies that the user has at least some history of visiting the site that kicked off the download.

The download will also proceed automatically if the user explicitly initiated a download by using the Save link as context menu command, entered directly into the browser’s address bar the download’s URL, or if Microsoft Defender SmartScreen (in Edge, or Google Safe Browsing in Chrome) indicates that the file is known safe.

Update: Starting in version 91, Microsoft Edge will join Google Chrome in interrupting downloads that lack the required gesture.

User Experience for Downloads Lacking Gestures

Within Google Chrome, a download lacking a required gesture shows explicit buttons to allow the user to decide whether to proceed with the download or abandon it:

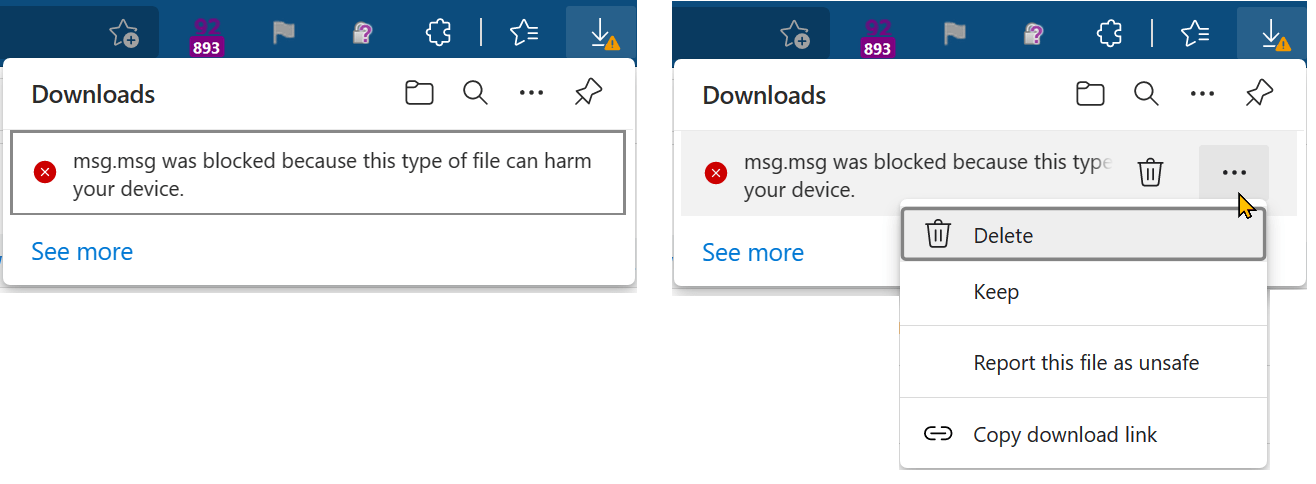

In contrast, Microsoft Edge states that the download “was blocked”, although the same options, titled Keep and Delete, are available from the … menu on the download item.

UPDATE: Edge 95+ has been updated with an interruption UX more like Chrome’s, in order to better reflect that the user may continue to download the file.

If you visit edge://downloads, you’ll see the same options:

Enterprise Controls

While users are somewhat unlikely to encounter download interruptions for sites they use every day, they might encounter them for legitimate downloads on sites that they use rarely or in sites that hit “Corner Cases” described in a section below.

To help streamline the user-experience for Enterprises, a Group Policy is available.

Enterprises can use ExemptDomainFileTypePairsFromFileTypeDownloadWarnings to specify the filetypes that are allowed to download from specific sites without interruption.

[{"file_extension":"xml","domains":["", ""]},
{"file_extension":"msg", "domains": ["*"]}]

If the SmartScreenForTrustedDownloadsEnabled (or equivalent policy for Chrome) is set to 0 (disabled), and the file download’s URL is Trusted (on Windows, in the Local Machine, Intranet, or Trusted zone) then the download will proceed without interruption (even without a gesture), regardless of danger_level. (Aside: This seems a bit strange, but feels more logical if you pretend that the file type warnings are a part of SmartScreen).

File Types Requiring a Gesture

The latest file types policies are published in the Chromium source code. As of May 2021, file types with a danger_level of ALLOW_ON_USER_GESTURE on at least one OS platform include:
accda, accdb, accde, accdr, action, ad, ade, adp, apk, app, application, appref-ms, as, asp, asx, bas, bash, bat, caction, cdr, cer, chi, chm, cmd, com, command, configprofile, cpgz, cpi, cpl, crt, crx, csh, dart, dc42, deb, definition, der, desktop, dex, diskcopy42, dmg, dmgpart, dvdr, dylib, efi, eml, exe, fon, fxp, hlp, htt, img, imgpart, inf, ins, internetconnect, inx, isp, isu, job, js, jse, ksh, lnk, mad, maf, mag, mam, maq, mar, mas, mat, mau, mav, maw, mda, mdb, mde, mdt, mdw, mdz, mht, mhtml, mmc, mobileconfig, mpkg, msc, msg, msh, msh1, msh1xml, msh2, msh2xml, mshxml, msi, msp, mst, ndif, networkconnect, ocx, ops, out, oxt, paf, partial, pax, pcd, pet, pif, pkg, pl, plg, prf, prg, ps1, ps1xml, ps2, ps2xml, psc1, psc2, pst, pup, py, pyc, pyo, pyw, rb, reg, rels, rgs, rpm, run, scr, sct, search-ms, service, settingcontent-ms, sh, shar, shb, shs, slk, slp, smi, sparsebundle, sparseimage, svg, tcsh, toast, u3p, udif, vb, vbe, vbs, vbscript, vdx, vsd, vsdm, vsdx, vsmacros, vss, vssm, vssx, vst, vstm, vstx, vsw, vsx, vtx, wflow, workflow, ws, wsc, wsf, wsh, xip, xml, xnk, xrm-ms, xsd, xsl

Other Fields in the File Type Policies

  • You’ll also note that some file types have an auto_open_hint which controls whether the user may configure that type of file to open automatically when the download completes.
  • File type settings sometimes vary depending on the client OS platform (an .exe is not dangerous on a Mac, while an .applescript is harmless on Windows). The platform attribute of an entry specifies on which OS the danger_level applies.
  • The max_file_size_to_analyze field controls how big of a file (.zip, .rar, etc) the browser will be willing to unpack to scan it for dangerous content.

Group Policies

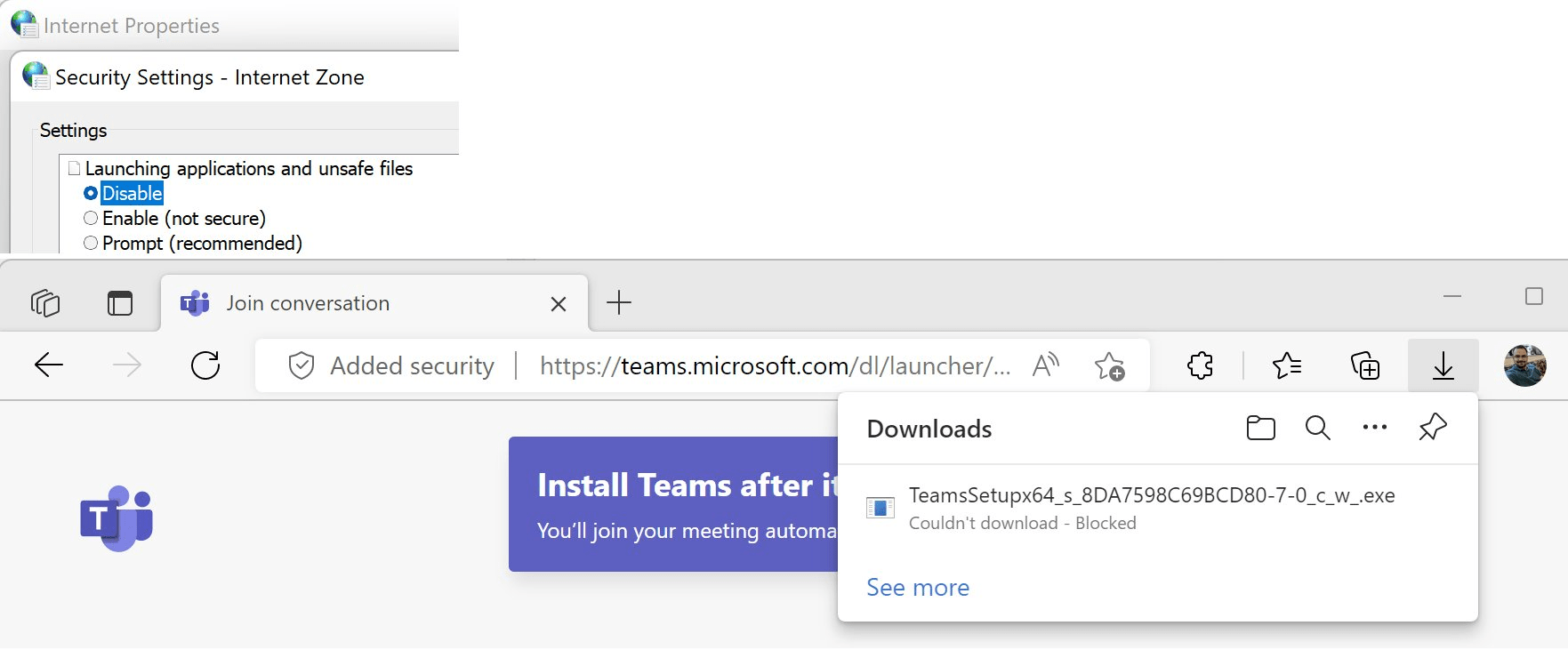

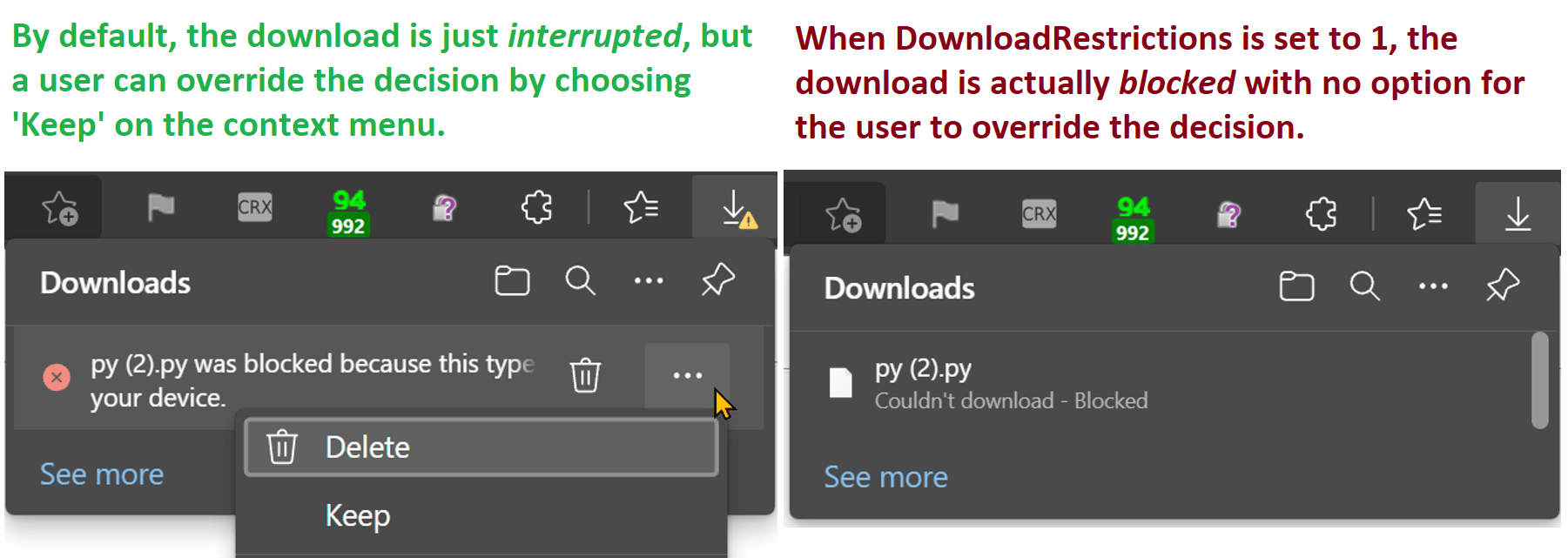

DownloadRestrictions is a policy that makes a complicated browser behavior even more complicated. When you set DownloadRestrictions to 1, Edge won’t just interrupt the download, it will block it.

Make matters even more complicated, if you enable DownloadRestrictions and Disable SmartScreen:

…then the file download is blocked silently with no notice — the Download UX does not show, and no warning is omitted to the Developer Tools console.

Enterprises can use ExemptDomainFileTypePairsFromFileTypeDownloadWarnings to specify the filetypes that are allowed to download from specific sites without blocking.

Corner Cases

  • If you put referrerpolicy=”no-referrer” on your download link (or otherwise suppress referrers), the Familiar Initiator check fails.
  • Prior to v94, if you initiate the download by dynamically creating an A element with a download attribute, then click it from JavaScript, User Gesture check fails.

As of August 2021, Microsoft Outlook Web Access’ email attachment file downloads encounter both of these issues.

Test cases for these conditions can be found here. (Note that you’ll have to have visited yesterday or earlier for the familiarity check to pass).

1 ALLOW_ON_USER_GESTURE_AND_FAMILIAR_INITIATOR would be the accurate name for the setting

Published by ericlaw

Impatient optimist. Dad. Author/speaker. Created Fiddler & SlickRun. PM @ MSFT '01-'12, and '18-, presently working on Microsoft Edge. My words are my own.
