Last Update: April 29, 2024
I’ve previously explained how Chromium-based browsers assign a “danger level” based on the type of the file, as determined from its extension. Depending on the Danger Level, the browser may warn the user before a file download begins in order to confirm that the user really wanted a potentially-dangerous file.
Deep in that article, I noted that Edge and Chrome can override the danger level for specific files based on the result of reputation checks against their respective security services (SmartScreen for Edge, SafeBrowsing for Chrome).
Stated another way, reputation services don’t just block download of known-unsafe files, they also smooth the download flow for known-safe files.
SmartScreen Application Reputation (AppRep) is a cloud service that maintains reputation information on billions of files in use around the world, and uses that reputation information to help keep users’ devices and personal information safe.
To see what that looks like, consider the case of downloading a trustworthy .EXE installer file (the Edge Canary setup program) in Edge with SmartScreen disabled and enabled.
Scenario: “Good” File
With SmartScreen disabled, we see a warning from the browser that the file could harm your device, because the .exe file type which has a danger level of ALLOW_ON_USER_GESTURE and I haven’t visited this download site before today1 in this browser profile:
In contrast, if we enable SmartScreen and try again, this time, the new download MicrosoftEdgeSetupCanary (5).exe is not interrupted by a warning:

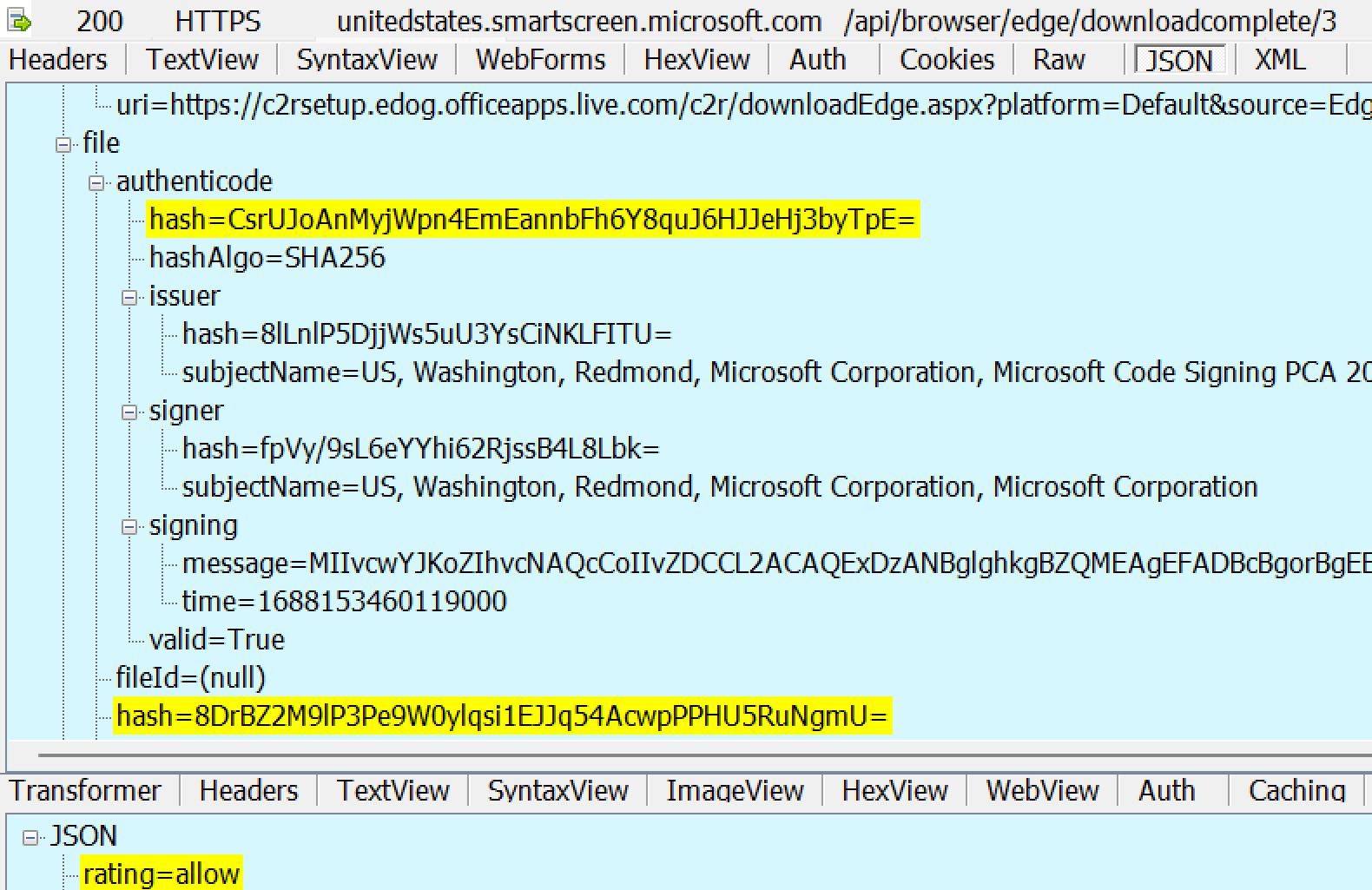

The new download’s default danger level was overridden by the result of SmartScreen’s reputation check on the downloaded file’s signature and hash. The result indicated that this is a known-safe signer or file:
Scenario: “Bad” File

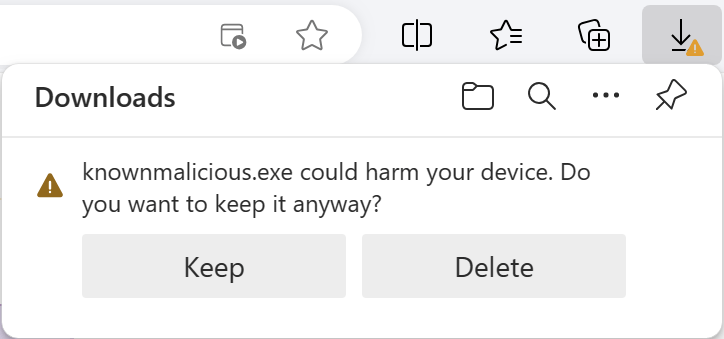

Now, consider the case the file is known to Microsoft to be malware. If SmartScreen isn’t enabled, there’s know way for Edge to know the file is bad, so users see the same security prompt as they saw for a “Good” file:

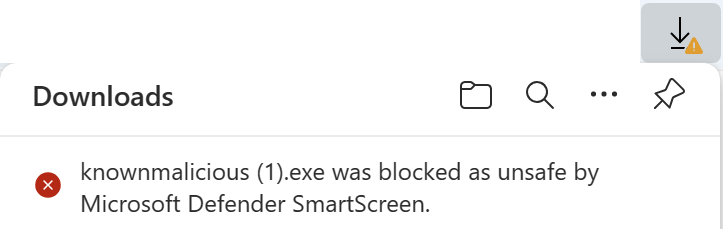

On the other hand, if SmartScreen is enabled, AppRep reports the file is bad and the user gets a block notice in Edge.
A user may choose to override the block by choosing Keep from the context menu:

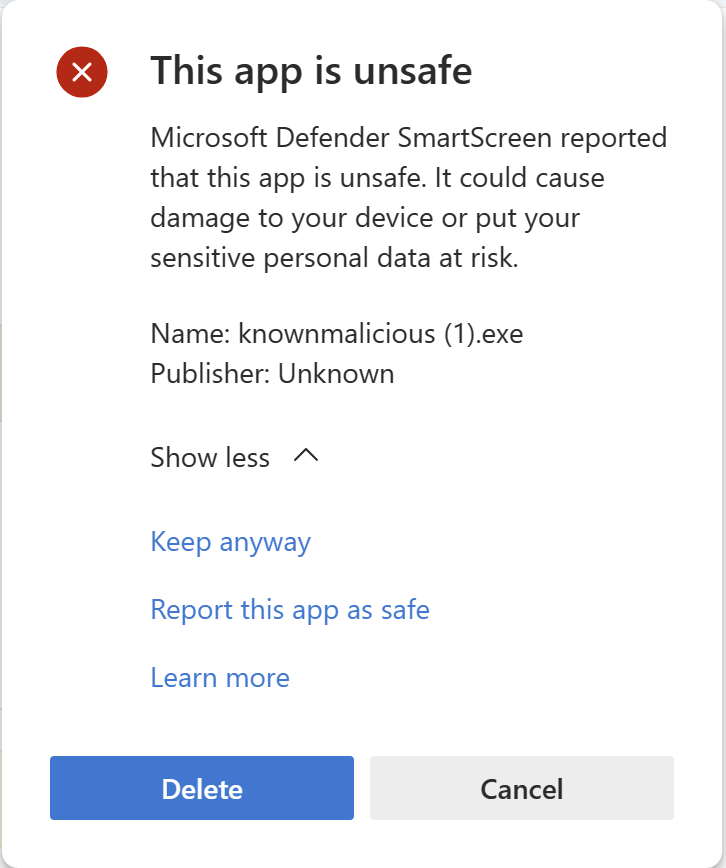

If the user chooses to Keep the file, an explanatory confirmation dialog is presented:
Scenario: “Unknown”/”Uncommon” File
In some cases, SmartScreen doesn’t have enough information to know if a file is good or bad.
If SmartScreen is disabled in Edge, the user sees the same old dialog as they saw for “Good” and “Bad” files:

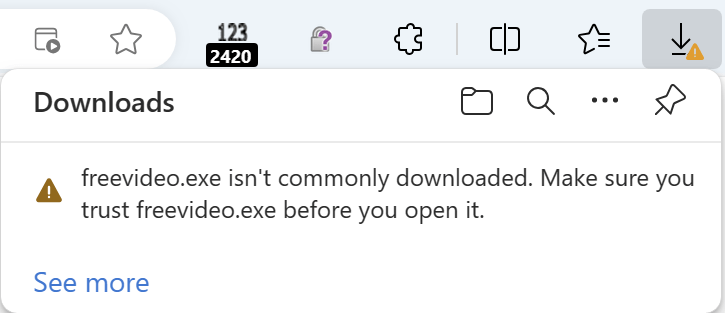

However, if SmartScreen is enabled, the user sees a notice warning them that the file is uncommon

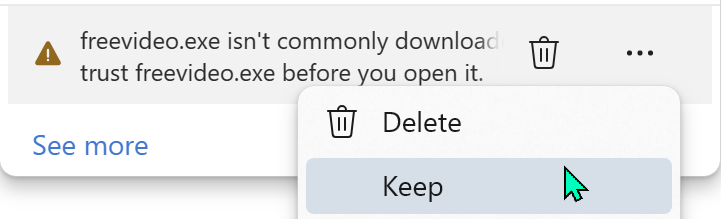

The user may elect to keep the file:

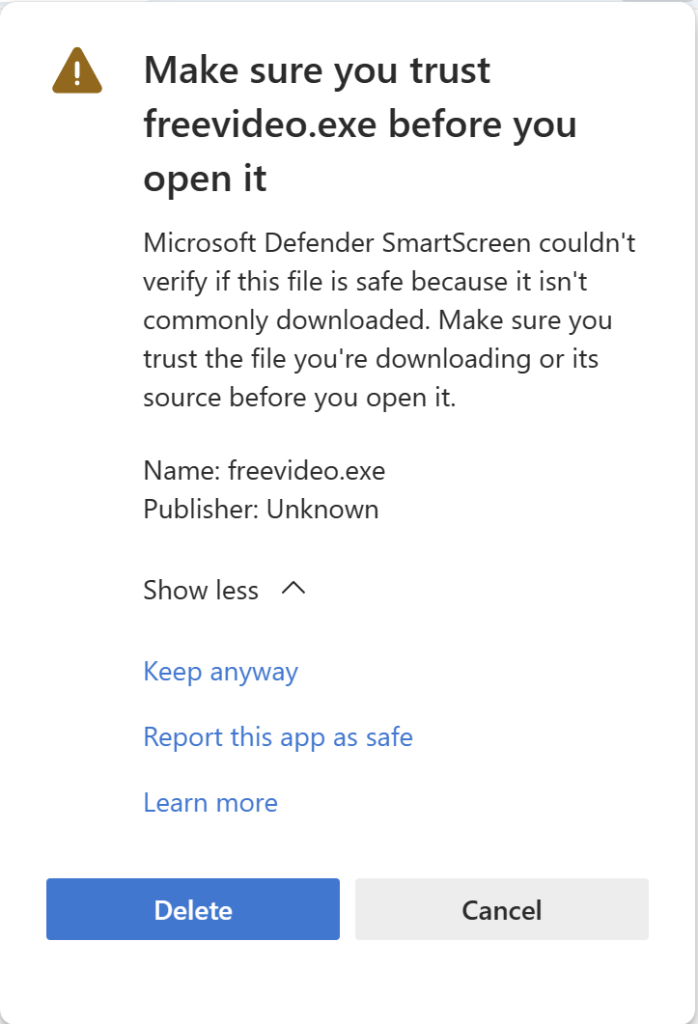

If the user chooses to Keep the file, an explanatory confirmation dialog is shown:
Windows Shell Integration

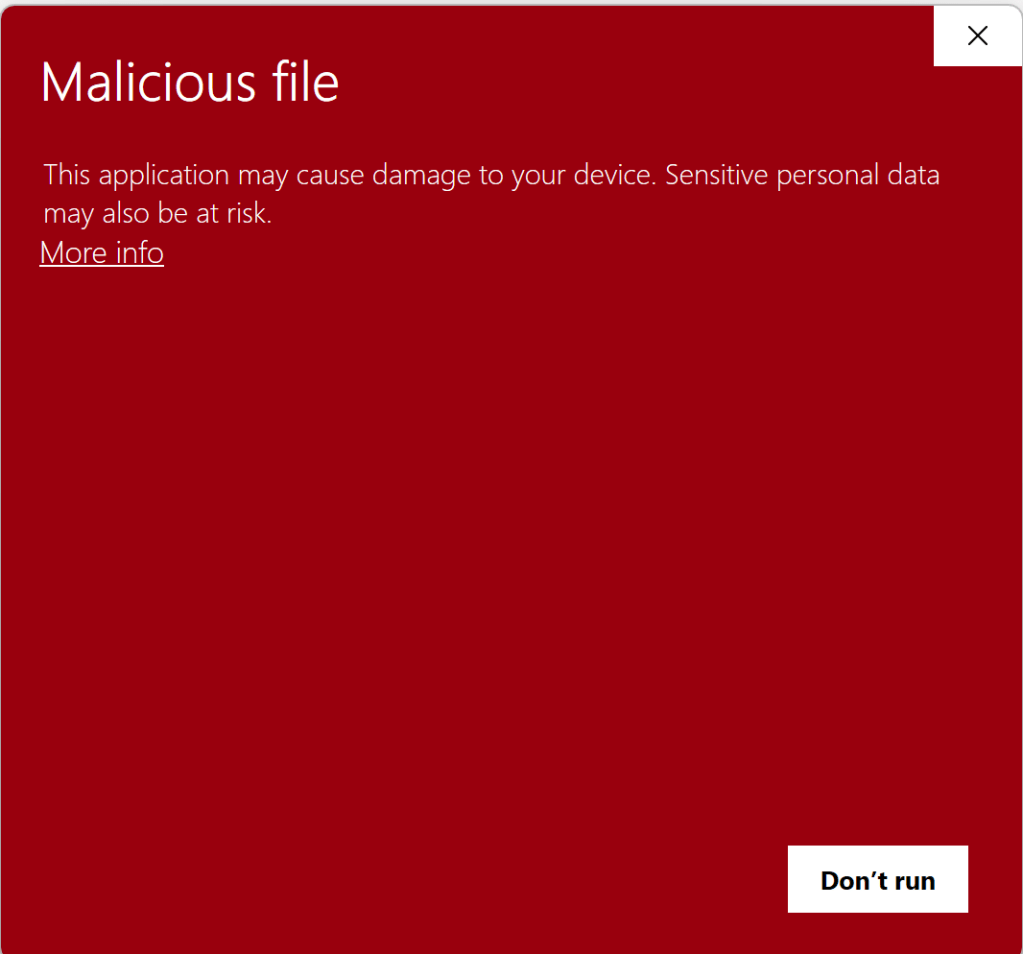

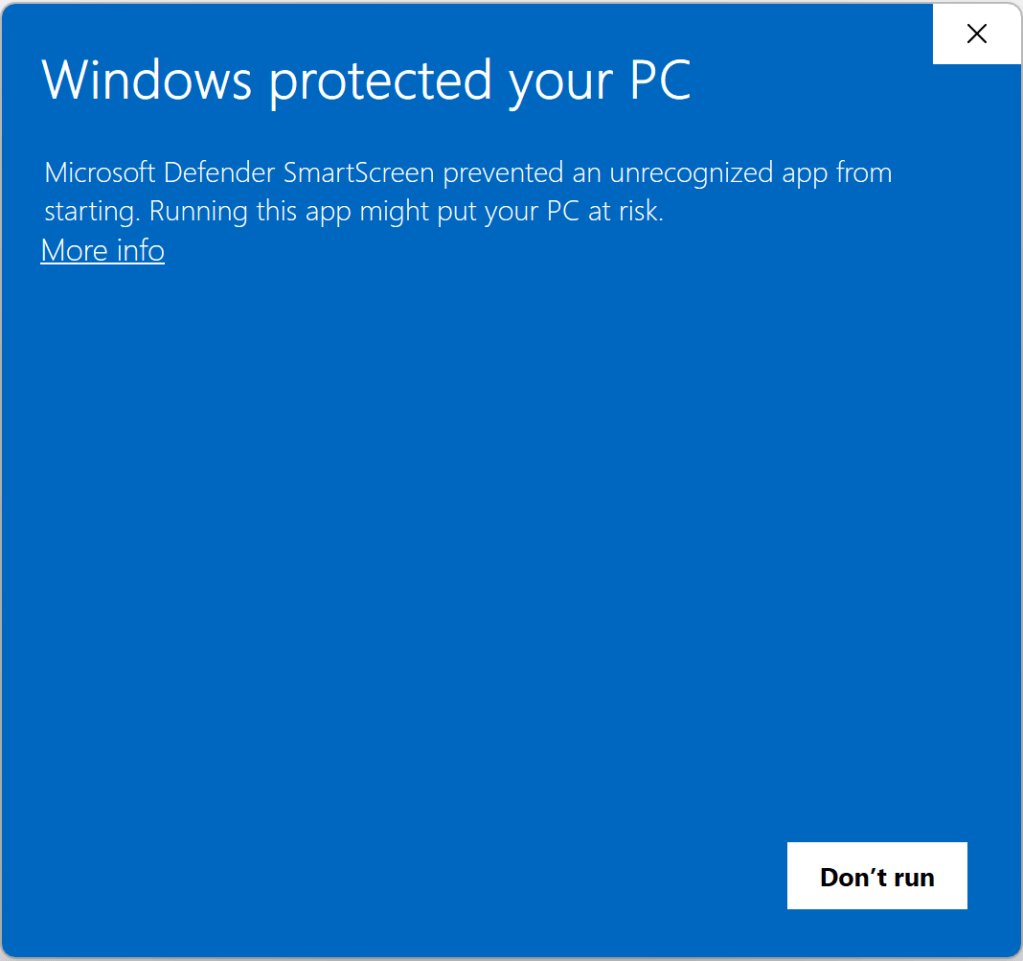

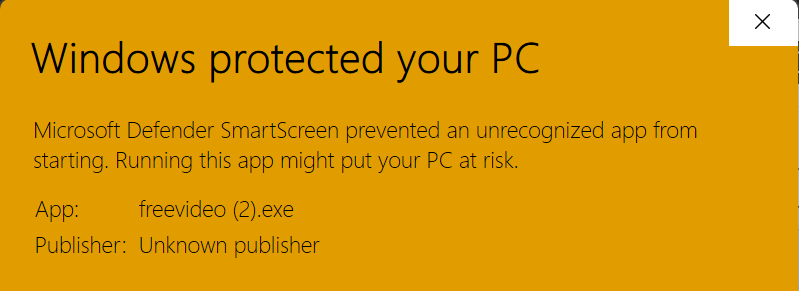

Beyond the integration into Edge, SmartScreen Application Reputation is also built into the Windows Shell. Even when you download an executable file using a non-Edge browser like Firefox or Chrome, the file is tagged with a Mark-of-the-Web (MotW). When a MotW-adorned file is executed via the ShellExecute() API, such as when the user double-clicks in Explorer or the browser’s download manager, the SmartScreen AppRep service evaluates the file. If the file has a known “Good” reputation, no security prompt is shown. However, if it is malicious or unknown, a prompt will warn or block the file:

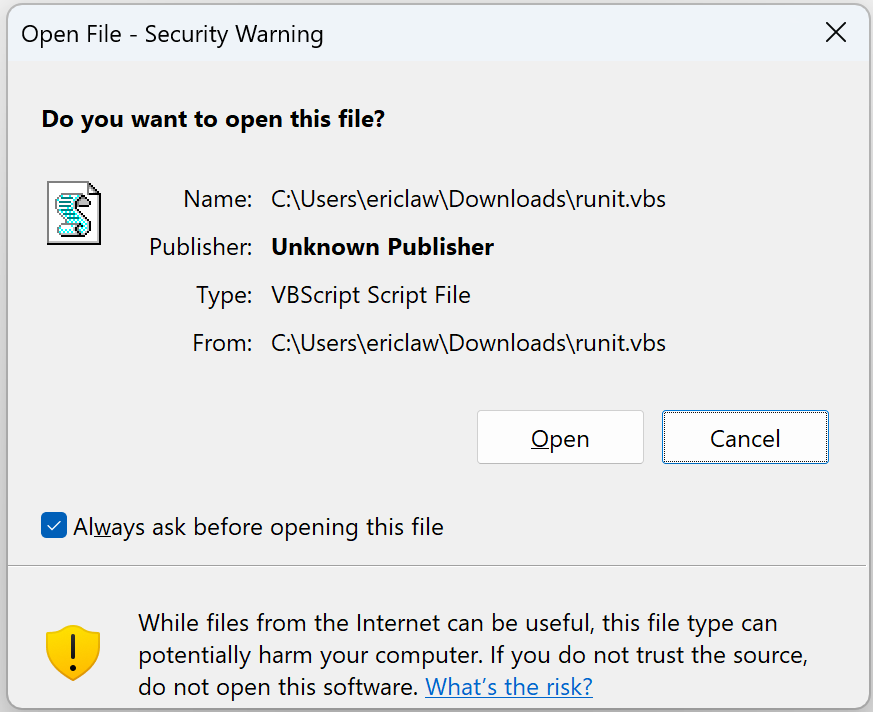

The legacy Windows Attachment Execution Services security prompt:
…is shown instead if any of the following are true:
- If SmartScreen is disabled via the Windows Security toggle > Reputation-based Protection >
Check apps and files - If the file’s extension is not on the list hardcoded into the AppRep client (
.appref-ms .bat .cmd .com .cpl .dll .drv .exe .gadget .hta .js .jse .lnk .msi .msu .ocx .pif .ps1 .scr .sys .vb .vbe .vbs .vxd .website .wsf .docm) - If the AppRep service reports that it does not support the file
- If the invoker called
ShellExecuteEx(SEE_MASK_NO_UI)
A Note About Windows Settings

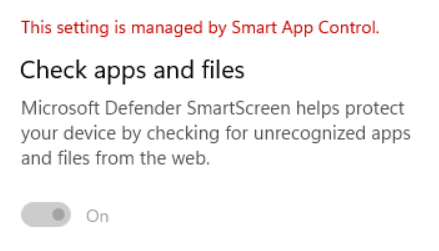

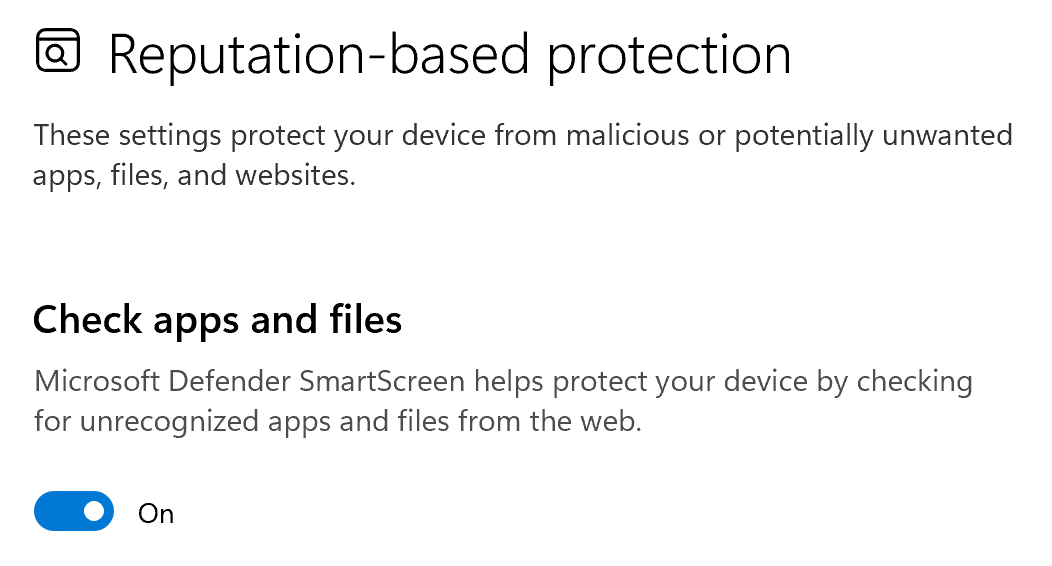

SmartScreen’s shell integration is controlled by the Security Settings > Reputation Based Protection > Check apps and files setting:

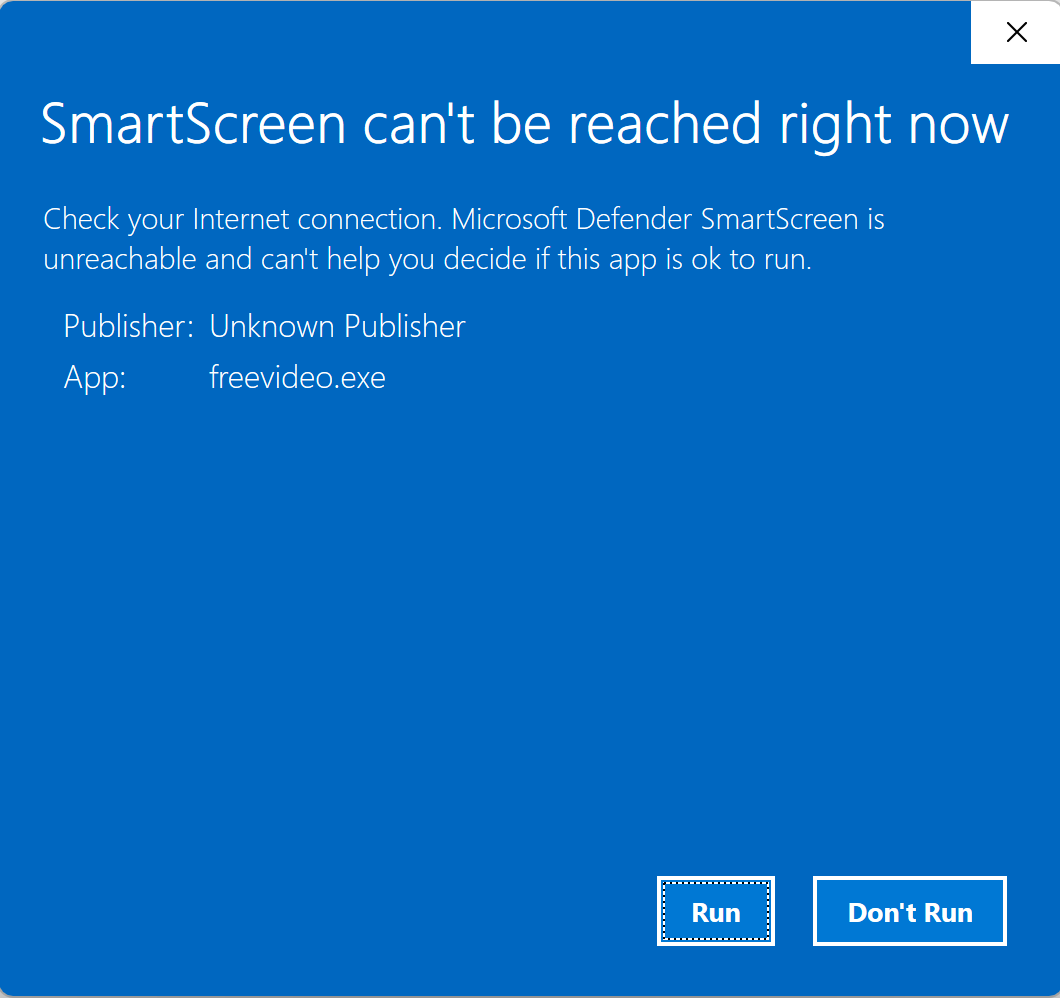

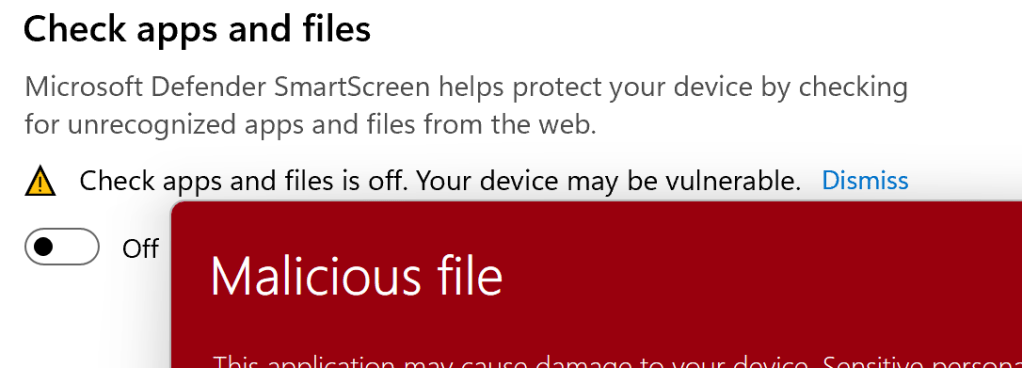

When On, SmartScreen checks are enabled. However, you may be surprised to notice that even with this setting toggled to Off, you can still get SmartScreen warnings:

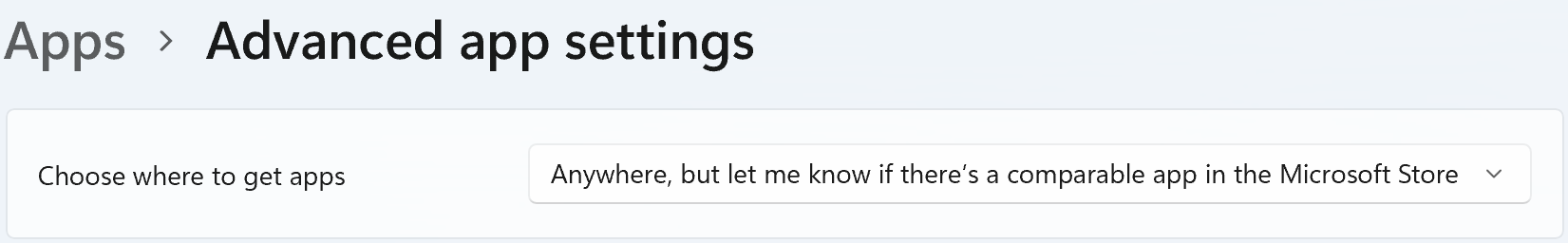

The reason is that there’s a different Windows setting, titled Choose where to get apps, and if that setting is set to either of the “Anywhere, but...” options:

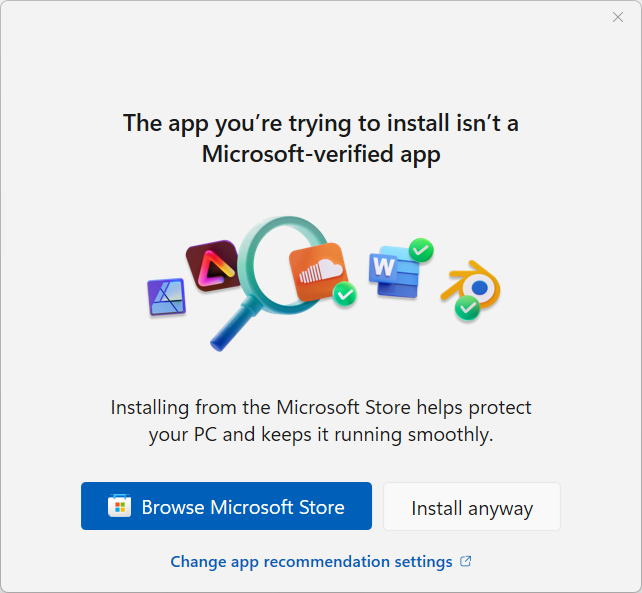

… then SmartScreen is also consulted (the “Choose where to get apps” feature is implemented by calling the same web service).
A Note about Invokers
Calls to display the Windows Shell Security prompts shown above:
1) Attachment Execution Services prompt (introduced circa 2000)
2) SmartScreen AppRep prompting (introduced circa 2010 & 2018)
…are integrated into the ShellExecuteEx API, and not into other APIs like CreateProcess.
As a consequence, execution of files bearing a Mark-of-the-Web does NOT trigger security prompts or SmartScreen Web Service checks when the invoker does not call ShellExecute(). The most common such invocation is CreateProcess, which is the path used by cmd.exe and PowerShell.
A Note about Reputation
The Application Reputation service builds reputation based on file hashes and the certificates used to sign those files. Because every update to a file changes its hash, this means that new files that are unsigned have no reputation by default. As a consequence, to avoid unexpected security warnings, a best practice for software developers is to sign your software using an Authenticode certificate. Because your certificate can be used to sign files for years, it will accumulate reputation that will accrue to files you sign in the future. Note that, from ~2013 to ~2019, any files signed by an Extended Validation Authenticode Certificate were given a “positive” reputation by default, but that is no longer the case.

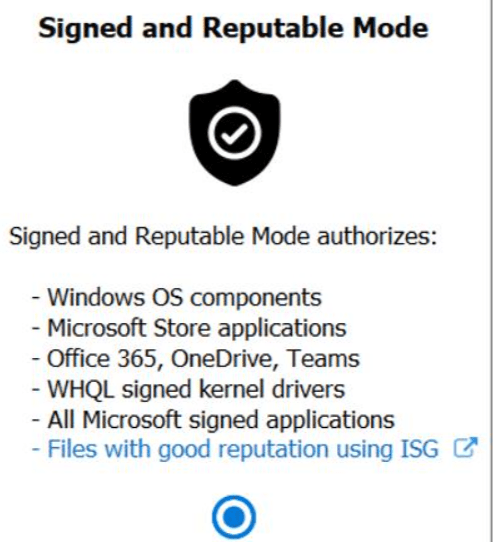

While SmartScreen only checks the reputation of the main file that the user executes (aka its “entry point”), you should sign all files to help protect them from tampering, and to ensure your app works correctly when Windows 11’s Smart App Control feature is enabled. The Windows 11 SmartAppControl feature goes further than SmartScreen and evaluates trust/signatures of all code (DLLs, scripts, etc) that is loaded by the Windows OS Loader and script engines.
-Eric
[1] When testing this yourself, you might find that you unexpectedly still don’t get a security prompt for some files even after SmartScreen is disabled. The logic for ALLOW_ON_USER_GESTURE is quite subtle, and includes things like “Did you ever previously visit the site that triggered this download before today?“
Try using the “Clear Browsing History” command (Ctrl+Shift+Del) to clear Browser History/caches before trying this scenario.
